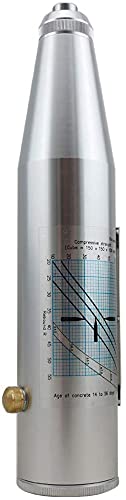

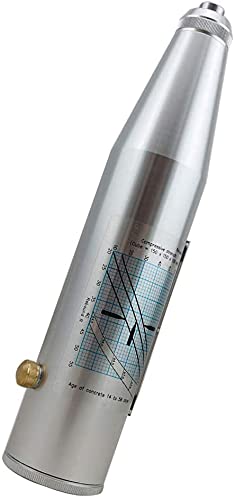

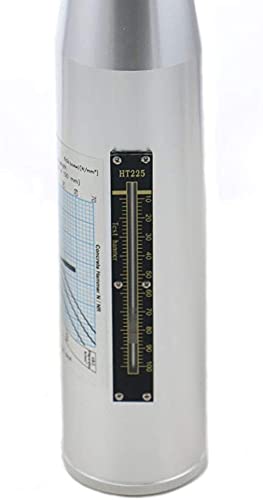

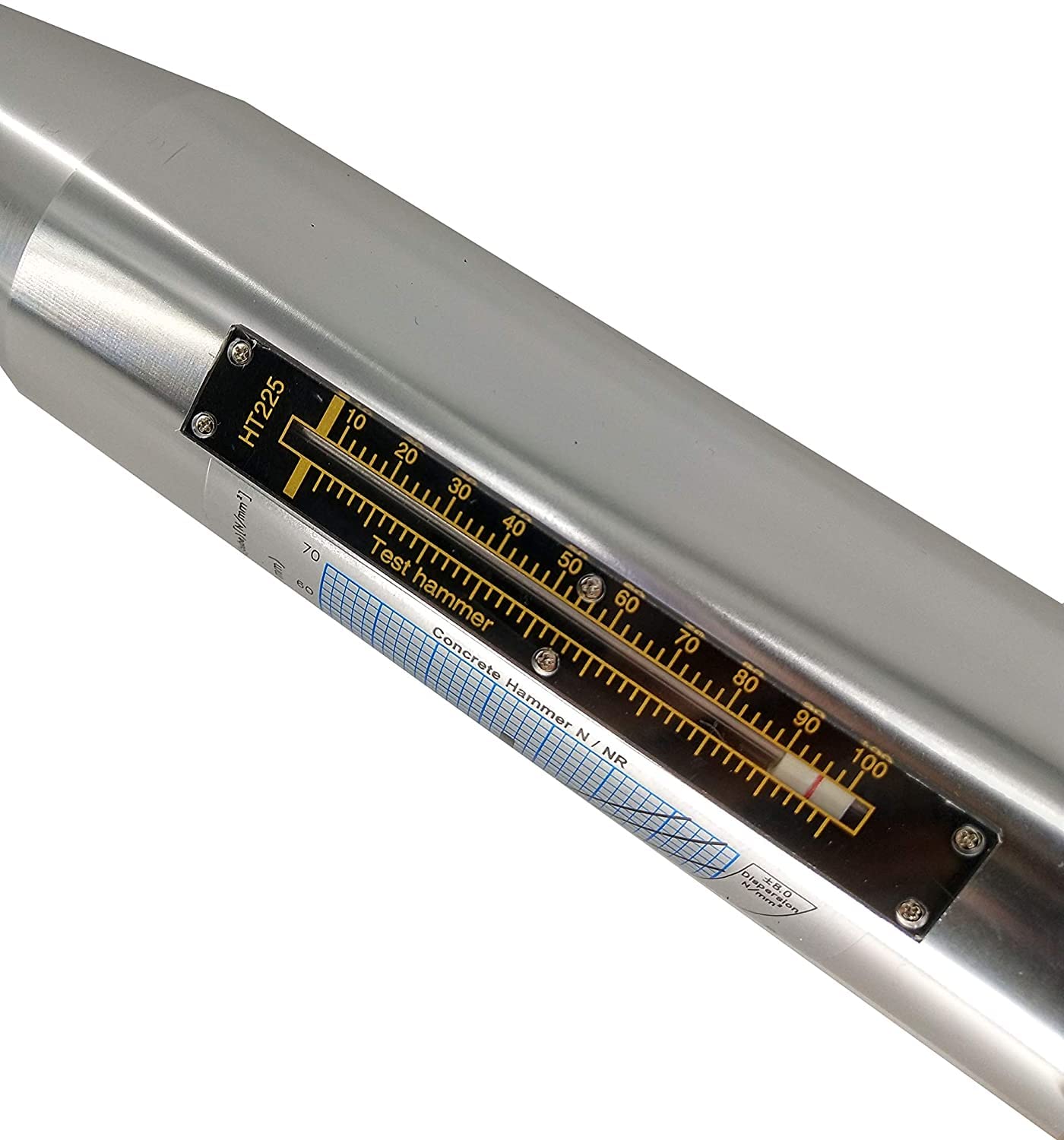

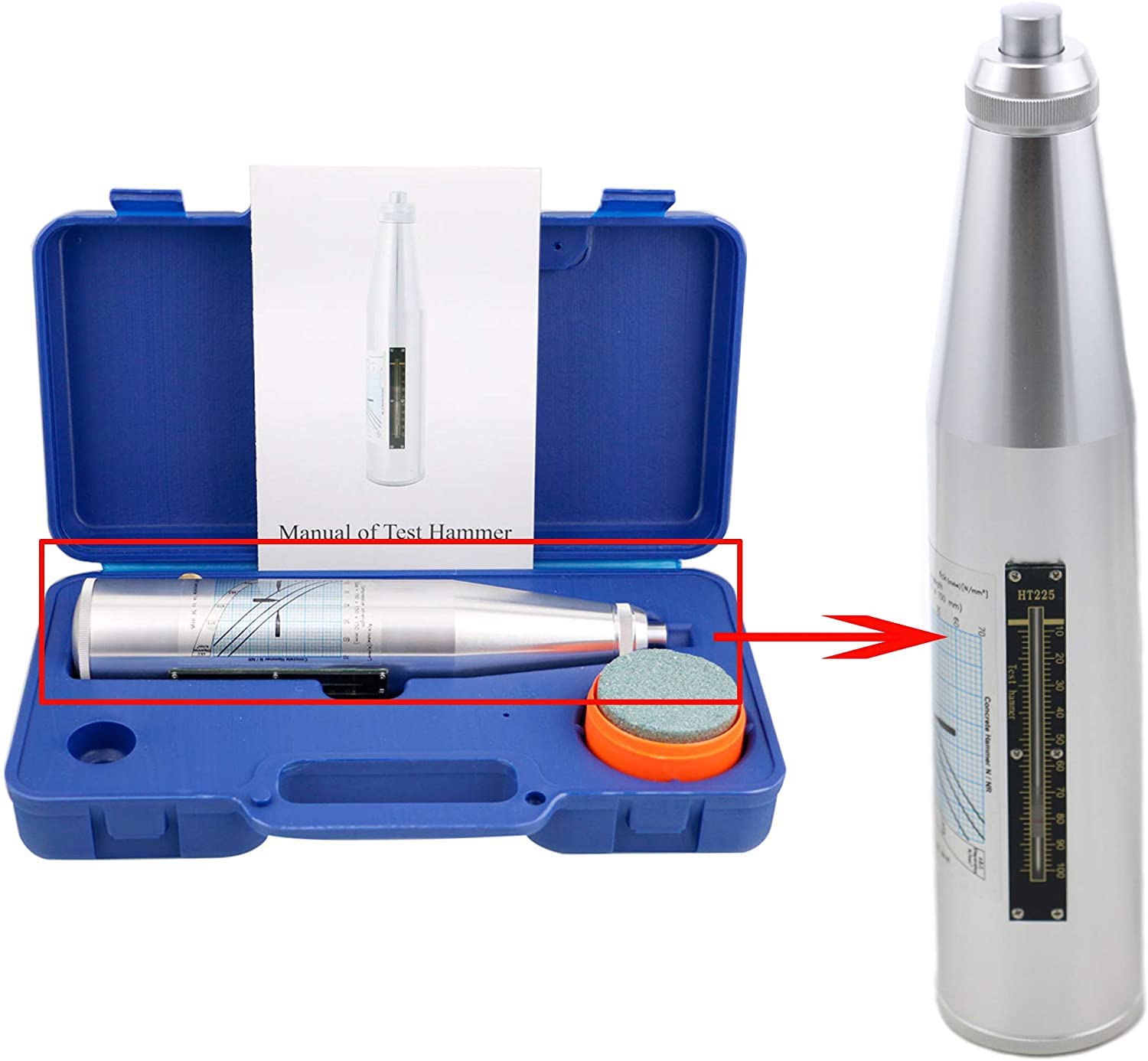

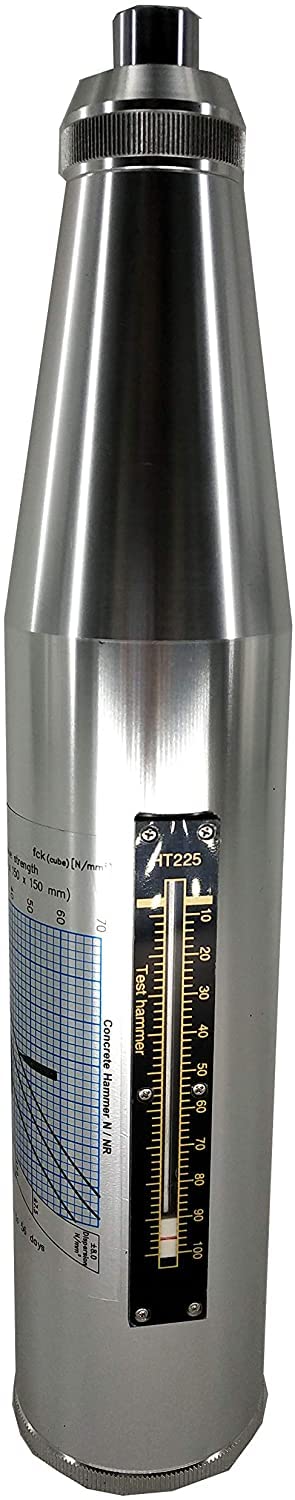

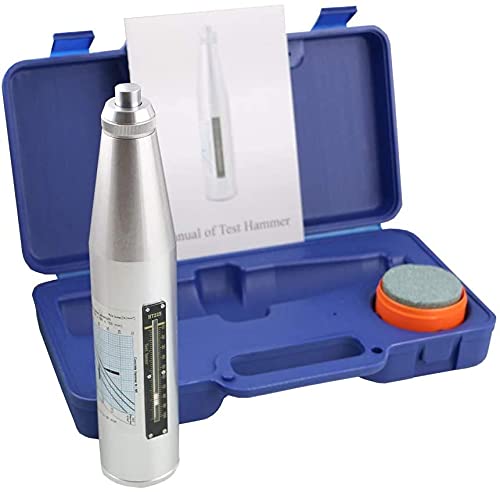

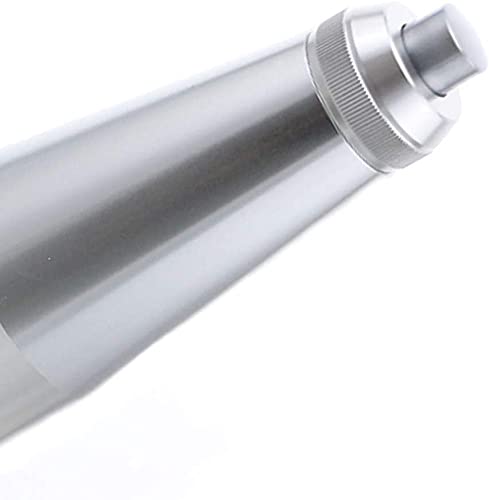

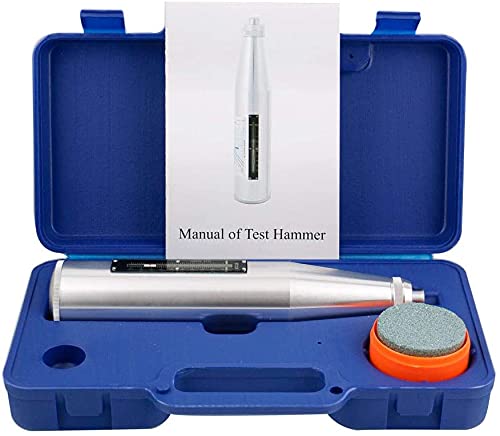

HFBTE HT-225 Concrete Test Hammer Concrete Rebound Hammer with High Aluminum Shell Design 10~60Mpa Test Range Introduction The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805. HT-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so on. Trait: Center rod is made from imported material, high accuracy and durable resistance.The shell is made form high Aluminum or high polymer material in order to perfect protect instrument from damage and extend use life.Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and longer use life. Technical Specifications: Test range: 10~60MpaStandard impact energy: 2.207J(0.225Kgf.m)Stroke of rebound hammer: 75mmFriction of pointer slider: 0.5N~0.8NSphere radius of rebound pole SR: 25mm±1mmAverage rebound value on steel anvil Rm: 80±2Size: Φ54*278mm; Weight: ≈1KG
